TDi Pro 2 Air Handler
Smarter Comfort. Smarter Control.
Precision EEV Control
Smart refrigerant adjustment for peak efficiency and comfort.
Seamless EHK Heater Integration
Direct compatibility with existing Ecoer EHK series heaters.
Dual Voltage (115V / 230V)
Installs anywhere with no electrical conversions required.
TDi Pro 2 Air Handler

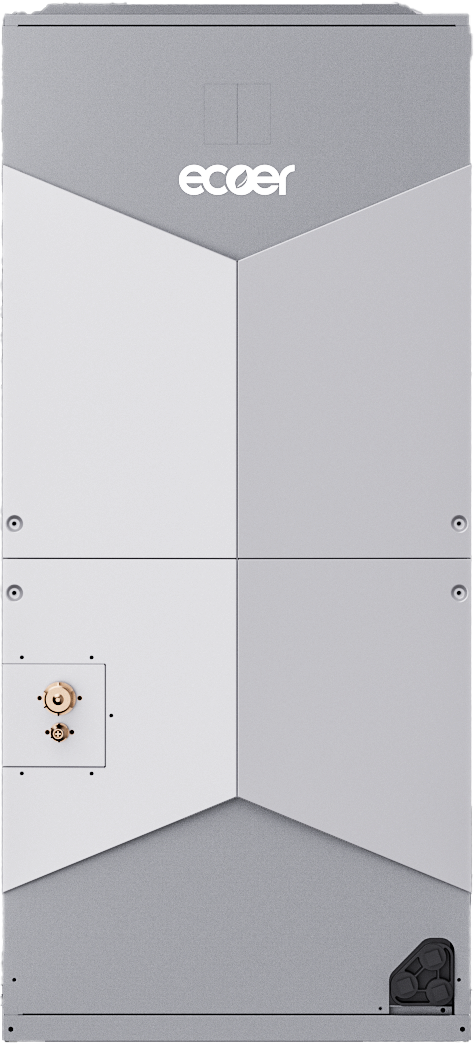

About Ecoer TDi Pro 2 Air Handler
The next-generation air handler engineered for precision, flexibility, and intelligent airflow. The Ecoer TDi Pro 2 Air Handler combines advanced variable-speed ECM motor technology, precision electronic expansion valve control, and intelligent comfort management to deliver consistent airflow, improved humidity control, and quiet operation. With flexible multi-position installation, dual-voltage compatibility, and seamless integration with Ecoer EHK series heaters, the TDi Pro 2 Air Handler is designed to simplify installation while supporting reliable, energy-efficient indoor comfort.
Available Models
Key Features
Advanced Comfort & Climate Management
- Variable-Speed ECM Motor: Maintains consistent airflow and ultra-quiet operation.
- Adaptive Airflow Modes: Auto-adjusting or selectable 2-stage settings.
- Draft-Free Heating: Delivers warm air gradually to eliminate cold air discharge at startup.
- Humidity Control Contacts*: Direct integration with humidifiers and dehumidifiers.
*24V dry contact for dehumidifier control; 24V powered connection for humidifier control.
Safety & Durability
- A2L Refrigerant Detection: Automatic leak monitoring.
- Resettable Fuse: Protects against power surges.
- Oxygen-Free Copper Evaporator: Designed to withstand environmental rigors.
Performance & Efficiency
- Enhanced Dehumidification with EST02 Thermostat: Low-airflow mode maximizes moisture removal.
- Ecolink Support: Enables smart diagnostics and remote management.
Installation Flexibility
- Multi-Position Design: Upflow, downflow, horizontal left and right.
- Multiple Refrigerant Line Connection Options: Press fitting, brazed, or flared connections.
- Filter Blockage Alert*: Notifies when maintenance is needed.
- TESP Diagnostics*: Tracks system pressure for optimization.
*Optional features.
Affordability That's Green
The Ecoer TDi Pro 2 Air Handler is engineered to deliver intelligent, energy-efficient indoor comfort through advanced variable-speed ECM motor technology, precision electronic expansion valve (EEV) control, and adaptive airflow management. Enhanced humidity control helps maintain a more comfortable indoor environment, while quiet operation and draft-free heating provide consistent comfort throughout the year. With dual-voltage compatibility, flexible multi-position installation, and seamless integration with Ecoer EHK series electric heaters, the TDi Pro 2 Air Handler offers a practical, high-performance solution designed to simplify installation and support efficient heating and cooling when paired with a compatible Ecoer system.
TDi Pro 2 Air Handler Dimensions and Specifications
Air Handler Dimensions (inch)
| Model | Width (W) | Height (H) | Depth (D) |
|---|---|---|---|
| EAHDEN-24ABA | 21 | 47-1/2 | 22 |
| EAHDEN-36ABA | 21 | 47-1/2 | 22 |
| EAHDEN-48ABA | 24-11/16 | 56-1/2 | 22 |
| EAHDEN-60ABA | 24-11/16 | 56-1/2 | 22 |
EAHDEN-24ABA
- Width
- 21 in.
- Height
- 47-1/2 in.
- Depth
- 22 in.
EAHDEN-36ABA
- Width
- 21 in.
- Height
- 47-1/2 in.
- Depth
- 22 in.
EAHDEN-48ABA
- Width
- 24-11/16 in.
- Height
- 56-1/2 in.
- Depth
- 22 in.
EAHDEN-60ABA
- Width
- 24-11/16 in.
- Height
- 56-1/2 in.
- Depth
- 22 in.
Swipe horizontally to view all AHRI categories.
AHRI Rating
| Refrigerant | AHRI Ref # | *Energy Star | CEE Tier | IRA Tax Credit | Outdoor Unit | Air Handlers | Cooling Performance | Heating Performance | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Total | EER2 (2) | SEER2 (1) | High | HSPF2 (3) | Low | |||||||
| (47°F) | (5°F) | |||||||||||
| R454B | 216445239 | Both | CEE Tier 1 (Path A & B) | Yes | EODA19H-2436AB* | EAHDEN-24AB* | 24000 | 13 | 20 | 24000 | 10 | 19600 |
| R454B | 216445240 | Both | CEE Tier 1 (Path A & B) | Yes | EODA19H-2436AB* | EAHDEN-36AB* | 34200 | 12 | 19 | 36000 | 10 | 25200 |
| R454B | 216620321 | Both | CEE Tier 1 (Path A & B) | Yes | EODA19H-4860AB* | EAHDEN-36AB* | 35200 | 12.5 | 19 | 35200 | 10 | 35200 |
| R454B | 216445241 | Both | CEE Tier 1 (Path A & B) | Yes | EODA19H-4860AB* | EAHDEN-48AB* | 47000 | 12 | 19 | 48000 | 10 | 34400 |
| R454B | 216445242 | Both | CEE Tier 1 (Path A & B) | Yes | EODA19H-4860AB* | EAHDEN-60AB* | 54000 | 11.2 | 18.5 | 55000 | 10 | 38500 |
Looking for additional product information? Download the Ecoer TDi Pro 2 Air Handler brochure.
Download Brochure
Confidence in Every Season.
Ecoer's TDi Pro 2 is supported by warranty protection designed to provide lasting peace of mind, including parts coverage and available labor protection options for eligible systems.
Coverage, eligibility, registration requirements and exclusions are subject to Ecoer's official warranty terms and conditions.
